Coronary Artery Calcification and Coronary CTA:


Basis for coronary calcium screening:

The lifetime risk of developing coronary artery disease (CAD) after 40 y of age is 49% for men and 32% for women [123]. Cardiovascular disease is the leading cause of mortality for both men and women [259]. Of the 300-450,000 annual events of sudden cardiac death in the US, nearly 40% of them can be attributed to previously unrecognized CAD [123]. Pre-clinical detection of CAD can result in early institution of risk modification. Assessment for the presence of coronary artery calcium is an excellent method for screening asymptomatic patients for the presence of CAD.

Atherosclerosis is a complex pathologic process characterized by lipoprotein deposition, a maladaptive inflammatory response, ensuring apoptosis and necrosis, and healing with calcification and fibrosis [264]. Therefore, the development of atherosclerotic plaque is accompanied by the deposition of crystals of hydroxyapatite (calcium phosphate) [45] and calcification does not occur in normal coronary arteries. Hence, the presence of coronary artery calcification (CAC) indicates underlying coronary artery disease [9] and the amount of calcification correlates with the atherosclerotic plaque burden [24,45,83,100]. In one study, 35% of patients with a calcium score between 11-400 had significant coronary stenoses on CTA, and this increased to 65% of patients with a score above 400 [83]. More importantly, 21-47% of patients with normal myocardial perfusion exams have extensive CAC (>400) and this can result in risk reclassification (to high risk) and more aggressive medical therapy [196]. In one study, of asymptomatic patients with normal MPI exams, up to 54% of patients were reclassified as high risk based upon calcium scores of greater than 100 [236]. In another study of patients with normal PET/CT perfusion exams, 30% had calcium scores ≥ 100 and of patients considered low risk by FRS, 57% had evidence of subclinical CAD based upon the presence of CAC [197]. Despite normal perfusion exams, patients with high calcium scores have been shown to be at increased risk for coronary events [197].

Who to screen?:

Unfortunately, clinical risk factors do not always identify patients with atherosclerotic CAD [28]. The best use of CAC screening is to refine patient cardiac event risk assessment by providing incremental information over conventional risk factors [45,46]. The Framingham risk score (FRS) has been used to stratify patients risk for developing coronary artery disease and their 10 year risk [169]. The score considers traditional risk factors for CAD including age, gender, diabetes, systolic blood pressure, total cholesterol, HDL cholesterol, and smoking history to predict the patients 10-year risk for hard CAD events [169,222]. A person with a likelihood of cardiac events of less than 6-10% per 10 years is considered low risk and is unlikely to benefit from additional cardiac testing [92,222]. An intermediate risk FRS is associated with 6-19% ten year risk for a coronary event, and a high FRS has a greater than 20% risk [222]. Unfortunately, up to 20% of CAD events can occur in patients without major risk factors [169] and CAC has been shown to outperform FRS for overall risk stratification [198]. As the Framingham risk score identifies short term risk only, a more appropriate measure of cardiovascular risk may be an overall lifetime risk assessment [288]. Idenitification of younger individuals with low-short term, but high lifetime risk identifies a group of patients that would benefit from earlier lifestyle modification [289]. Present guidelines recommend the calculation of lifetime cardiovascular risk for all individuals between the ages of 20-39 years and for those between the ages of 40-59 years in the non-high Framingham risk category [288]. Unfortunately, even among young patients with low short and lifetime risks, up to 15% have at least a moderate degreee of coronary atherosclerosis (as denoted by a CAC > 100) [289].

For patients in the intermediate FRS risk category (or for patients with 3 or more cardiac risk factors) coronary artery calcium scoring can provide incremental prognostic information regarding risk prediction for coronary events [28,29,195] and is cost effective in this population (which comprises about 40% of the general population [92]) [45]. After CAC screening, as many as one-half of patients originally classified as Framingham intermediate risk, are reclassified to high risk or low risk [264]. For intermediate FRS patients, a calcium score of under 100 places them into a lower risk category (annual CHD death or MI rate of 0.4%), compared to an annual CHD death or MI rate of 2.4% if their score is greater than 400 [127]. In one study [195], 16% of intermediate risk patients were reclassified as high risk following CAC screening [195].  SPECT MPI is insufficient to identify the coronary atherosclerotic burden or to reveal coronary stenoses lacking hemodynamic significance [237]. Even in patients with normal myocardial perfusion exams, up to 17.5% can be shown to have coronary artery disease with calcium scores of greater than 100 [57]. Early identification of these patients can result in earlier medical intervention and risk factor modification [57]. The American College of Cardiology/American Heart Association Expert Consensus Document recommends that CAC screening can be considered in asymptomatic subjects with an intermediate risk (FRS 10-20%) [224,228].

High risk patients probably do not require CAC screening for risk assessment [195]. Even if classified as low risk based upon CAC screening, high risk patients have been found to have a higher coronary event rate [195]. Patients with chest pain that is typical of angina should be evaluated with MPI or coronary CTA [236].

CAC screening in diabetes:

Patients with diabetes have a 4 times greater incidence of CAD than the general population [80] and CAD is the leading cause of death in diabetic patients- accounting for 75% of deaths [222]. CAD is commonly silent in patients with diabetes and when CAD becomes clinically manifest in diabetics it is often in an advanced state [80,222,282,301]. Silent ischemic coronary artery disease can be found in 6-59% (up to 75% of patients aged 65 years or older [222]) of diabetics [68,119,207,282] and approximately 20-40% of asymptomatic diabetic patients have abnormal myocardial perfusion studies [123,140]. (Other authors indicate that abnormal perfusion exams can be found in 21-59% of asymptomatic diabetic patients, with 15-20% of patients having high risk findings [222]). However, recent studies have suggested that SPECT-MPI screening in asymptomatic diabetic patients does not lead to improvement in cardiac outcomes- likely due to implementation of aggressive medical therapy in these patients [183,184]. Even diabetic patients with a normal myocardial perfusion exam can have annual cardiac event rates of 3-6%, which is more than twice that of nondiabetic patients with a normal stress exam [202]. [229]. Asymptomatic diabetic patients can also have abnormal perfusion exams even in the absence of stenotic coronary lesions and this is felt to be secondary to impairment in endolethial vasodilatation in small coronary vessels [229].

Early CAC screening of asymptomatic diabetes may prove beneficial [68]. An Agatston score > 0 can be found in up to 43% of asymptomatic diabetics under the age of 40 years [287]. CAC measurements can provide additional risk stratification for asymptomatic diabetic patients (diabetics with calcified coronary plaques are 4 times more likely to experience a cardiac event than persons without diabetes with low Agatstons scores [287]) [183] and there is an increasing event-rate with increasing CAC-risk category [301]. In general, diabetics have higher CAC scores compared to patients without diabetes (the likelihood of having a CAC score in the highest age/gender quartile is 70% greater for diabetics) [68]. Additionally, for every increase in CAC score, there is a greater increase in the mortality rate for diabetic patients than for patients without diabetes [68,220]. Measurements of CAC have been found to be superior to established cardiovascular risk factors (Framington Risk Score) in predicting silent myocardial ischemia and short term cardiovascular events in asymptomatic diabetic patients [119,183]. Importantly, diabetic with low CAC scores (<10) have a favorable prognosis- with an annual event rate as low as 0.2% [183,202,301]. Berman et al. suggest SPECT-MPI for diabetic patients with CAC scores above 400 [183], while other authors suggest MPI if the CAC score is above 100 [222].

A multimodality approach to the identification of CAD in diabetic patients may prove to be the most useful [140]. Despite abnormal SPECT imaging, up to 30% of asymptomatic diabetic patients may show no evidence of coronary artery calcifications (frequently due to the presence of non-calcified plaque, although microvascular disease and endothelial dysfunction can also produce perfusion abnormalities in these patients) [140].

Coronary CTA imaging can also be used for the assessment of CAD in diabetic patients [301]. In one study, 41% of plaques in diabetics were non-calcified and would not have been appreciated on CAC-CT [162,229] and up to 70% of asymptomatic diabetic patients with normal SPECT imaging can show evidence of coronary artery disease at CT coronary angiography (both obstructive and non-obstructive) [140]. In studies comparing asymptomatic diabetic and non-diabetic patients using CCTA the prevalence of coronary plaques ranged from 80-93% (significant stenosis 29-33%) in diabetic patients compared to the control population (range 7-16%) [162]. In another study of asymptomatic diabetic patients, coronary CTA revealed a high prevalence of CAD (85% of patients) which was mostly non-obstructive (51%), but obstructive CAD (50-70% stenosis) was found in 27% of patients and severe CAD (>70% stenosis) in 7% [301]. An increase in event rate was observed with increasing coronary stenosis severity [301]. In this same group of patients, a negative CTA exam was associated with a very good prognosis (event rate 3% over an 8 year period) [301]. However, coronary CTA screening may not provide survival benefit in asymptomatic high risk diabetic patients compared to optimal medical treatment [301].

CAC screening in end-stage renal disease:

The risk for adverse cardiac events rises significantly once the eGFR falls below 60mL/min/m2 [206]. Patients with end-stage renal disease (ESRD) also have a higher incidence of CAD- in fact, CAD is the leading cause of death (43-50%) in patients with ESRD and this typically occurs within the first year of hemodialysis [70,177]. Chronic kidney disease patients have a more than 10 to 20 fold increased risk of cardiac death compared to age and gender-matched control subjects without chronic kidney disease [152,206]. Patients with ESRD that receive some form of dialysis have a 100-fold higher risk of death from cardiovascular disease than matched healthy controls [123]. More importantly,  a large percentage of patients on hemodialysis with significant coronary artery disease are asymptomatic [206]. In one study of patients with ESRD, 70% of the patients had calcium scores above the 75th percentile for gender- and aged-matched population without ESRD [230]. In a prospective study of asymptomatic ESRD patients undergoing hemodialysis, significant coronary artery narrowing (over 75%) was present in 71% of patients [123]. Additionally, the administration of drugs that influence cardiovascular function such as dipyridamole or adenosine may elicit a significant reduction in blood pressure or heart rate in dialysis patients because their autonomic function is impaired [152]. Diabetic patients with chronic kidney disease have an even higher cardiac event rate compared to nondiabetic patients with chronic renal disease [206]. The early detection and treatment of coronary artery disease in patients with end-stage renal disease may result in improved outcomes [70].

CAC screening in patients with prior XRT:

Patients that have received prior radiation therapy to the mediastinum (such as lymphoma patients) have been shown to be at an increased risk for premature coronary artery disease (especially patients that have received more than 30 Gy) [133]. Asymptomatic coronary artery disease can be found in 21-89% of lymphoma patients that had received XRT to the mediastinum and a significant number can have stenoses over 50% [133]. Both coronary artery calcium scoring and coronary CT angiography may play a role in evaluating these patients [133]. A significant number of patients have been shown to have calcium scores above the 90th percentile for their age and sex [133].

CAC screening prior to planned coronary intervention:

CAC can be performed prior to planned PCI to aid in lesion characterization [307]. Severely calcified plaques present a challenge for PCI as they typically result in smaller final lumen diameter and less lumen gain following stenting compared with non-calcified lesions [307]. Additionally, there is a lower procedural success rate, a more frequent rate of acute complications (such as dissection), and a greater propensity for restenosis [307]. The AHA guidelines indicate that rotablation is reasonable for fibrotic or heavily calcified plaque lesions [307]. A pre-lesion calcium score >/= 453 can predict the need for rotablation with a sensitivity of 93% and specificity of 88% [307].

Both the prevalence of CAD and mortality associated with it appear to be increased among HIV patients [242]. HAART is independently associatedwith a 26% relative increase in the rate of MI per year of exposure [242].

Family history of CAD in a first-degree relative is also a risk factor for premature CAD- the younger the age of CAD onset in the relative, the higher the risk to the other first degree relatives [244].

Significance of exam findings:

For both helical and EBCT, an Agatston scoring scale is used to quantify the amount of calcium identified.

CT calcium scoring is a strong predictor of cardiovascular risk, independent of clinical risk factors or the Framingham risk score [264]. In asymptomatic patients a negative CT test makes the presence of atherosclerotic plaque very unlikely and is associated with a low risk for a cardiovascular event in the next 2-5 years (and perhaps even out to 10-12 years [235]) [35]. The ability of a zero CAC score to exclude CAD is highly dependent on the pre-test likelihood of CAD [312]. The reported event rate for a zero CAC score in asymptomatic patients is 0.1-0.5 % per year (the event rate for patients with normal MPI exams is 0.6-1% per year) [236,237,274]. The 10 year risk is approximately 1% for patients without CAC, which is well below the traditional low risk threshold of <6-10% 10 year risk [274]. Additionally, the negative predictive value of a CAC score of zero is higher than the NPV of exercise testing [281]. It is important to remember that the prognostic implications of a CAC score of zero are less reliable in symptomatic patients as atherosclerosis can still occur in the absence of CT-detectable calcification [237,270].

Although SYMPTOMATIC patients without CAC have a significantly lower event rate than those with CAC (1.8% versus 9%), the event rate is still higher than that among asymptomatic patients [271]. Among symptomatic patients with a CAC score of 0, up to 13% can be shown to have non-obstructive CAD and up to 3.5% can have obstructive CAD (stenosis > 50%) by CCTA [270]. Other authors quote higher rates of obstructive CAD in symptomatic patients with CAC scores of zero, and therefore, absence of CAC in symptomatic patients cannot reliably exclude important CAD [271]. However, when symptomatic patients are stratified according to clinical risk (low or intermediate risk, as opposed to high risk), the absence of CAC may carry adequate negative predictive value [271,281]. Addtionally, the presence of CAC in symptomatic patients with nonobstructive CAD is associated with an increased hazard for death or MI [294]. The overall mortality risk in these patients is proportional to the coronary calcium score (mortality was 1.5% at 4 years for a score of 1-10, but 10.4% for a score of equal to or greater than 400) [294].

Conversely, patients with CAC have an adjusted relative risk ratio for cardiac events 20 times higher than that for patients without CAC [29]. In general, the higher the calcium score, the greater the risk for cardiac events [130,174]- in one study, the risk of cardiac death or non-fatal MI was 3.9 times higher for patients with calcium scores greater than 300, compare to patients with a calcium score of zero [28]. Another study found that a CACS greater than 300 was associated with a hazard ratio for future coronary heart disease events of nearly 10 [195]. The annual risk of death from a cardiovascular event or MI has been reported to be less than 0.4% for patients with no CAC, 1.3% for a score between 100-399, and ≥ 2% for patients with scores greater than 400 [174,193]. In another study of asymptomatic patients, the hazards ratio for major CAD events (compared to patients with a score of zero) was 5.3 for a score of 1-100, 10.8 for a score of 101-300, and 12.0 for a score greater than 300 [271]. Studies have shown that increasing calcified plaque continues to predict a graded decrease in survival even with extensive Agatston scores of over 1000, with no apparent upper threshold [291]. Importantly, even minor amounts of CAC are associated with increased risk for cardiovascular events- in the MESA study, investigators noted a threefold relative increase in hazards ratio for those with a score of 1-10 compared to those with a score of zero [283].

Studies have also shown that the severity of coronary artery stenosis and frequency of myocardial infarction/events correlate with the amount of calcification [9,10,30,35]. Current evidence supports aggressive anti-atherosclerosis therapy in patients with calcium scores above 100 [46]. Interestingly, patients who are given the results of their CAC score are more likely to modify their CAD risk factors and lower their LDL-cholesterol [235].

The presence of even moderate amounts of coronary calcium on CT (scores over 100) have been shown to be associated with silent ischemia in up to 18% of patients [45] and can predict an increased risk for cardiac events in symptomatic and asymptomatic individuals [24]. In an EBCT study, silent myocardial ischemia was found in 2.6% of patients with a score between 11 and 100, 11.3% of patients with a score between 101 and 399, and 46% of patients with a score above 400 [282]. The ACC foundation/AHA expert consensus document reported a summary relative risk ration of 4.3 for any detectable calcium when compared with a calcium score of 0 and raising up to more than 10 in patients with extremely severe coronary calcification [170]. However, at what calcium score should further cardiac evaluation be performed? Although coronary artery calcification is indicative of atherosclerotic plaque disease, it is not specific for luminal obstruction [127]. Among patients reported in the literature, coronary artery scoring resulted in positive findings in 78% of patients, but has been associated with inducible ischemia in only about one-fifth of patients [170]. Other authors indicate that 56% of patients with with scores greater than 100 have normal myocardial perfusion imaging [207].

Because CAC has only a poor to modest correlation with the degree of coronary lumenal stenosis, myocardial perfusion imaging should be considered in patients with high CAC scores to better define the clinical significance of the patients underlying coronary artery disease [45,271]. Despite the lack of a strong site-to-site correlation between calcification and lumenal stenosis, the CAC score gives a close approximation of the total atherosclerotic burden [271]. In general, the likelihood for the rpesence of iscehmia on myocardial perfusion SPECT exam (MPS) increases with increasing calcium score [83,100,283] and there appears to be a direct relationship of the extent and severity of perfusion abnormalities to the CAC score [95]. The frequency for ischemia on perfusion imaging is most common in patients with scores above 400 [283] and scores above 400 have also been shown to be associated with decreased coronary flow reserve [310]. Calcium scores between 100-399 represent an intermediate risk group [311]. However, for patients with scores between 100 and 400, the frequency of inducible ischemia is higher in patients with diabetes and/or metabolic syndrome (13% versus 4%) [283,311].

Coronary artery calcification: The patient below has a large calcification in their proximal LAD. Their total calcium score was 537.

  Lad Calc

CAC can aid in further patient risk stratification- for patients with low- and intermediate risk, a low calcium score is associated with an event rate below that predicted by the Framingham criteria alone [134]. A study comparing the FRC score to CAC evaluation (with CT angiography) found that the presence of any CAC was 97-98% sensitive for the presence of CAD [198]. In fact, if subjects were excluded from further screening because of a low risk FRC score, almost 2/3's of women and 25% of men with substantial atherosclerosis would have been missed [198]. In intermediate risk patients, the use of coronary calcium scoring can result in reclassification of more than half of the patients (16-22% reclassified as high risk, and 30-39% reclassified as low risk) [220]. The negative likelihood ratio (which is the factor by which a negative test result reduces the odds of having a disease) is excellent for CAC scoring and superior to that of the FRC score [198]. For example- assigning a woman to the low-risk Framingham risk category decreases her odds of having moderate or greater plaque burden by just 29%, whereas the absence of calcium decreases her odds by 96% [198]. Conversely, in a prospective study, intermediate FRS individuals with CAC scores > 300 had an annualized hard cardiac event rate of 2.5% (absolute 10 year risk > 20%) and would have therefore been re-classified into the high-risk group following the results of CAC imaging [207]. Overall, in intermediate risk patients, the use of coronary calcium scoring can result in reclassification of more than half of the patients (16-22% reclassified as high risk, and 30-39% reclassified as low risk) [220].

Coronary artery calcification also carries prognostic information as the greater the amount of calcification identified- the more likely the patient is to have a cardiac event [4,10].  When the CAC score is combined with data from a myocardial perfusion exam there is improved risk stratification, incremental prognostic information is obtained, diagnosis is improved, and there is improved patient management [179,236,237,308]. A CAC score of 400 or more is suggestive of advanced coronary artery disease and an increased risk for hard cardiac and cardiovascular events (even scores between 100-399 have an increased risk for hard cardiac and cardiovascular events [285]) [264,285]. Even for patients with normal perfusion scans, although the short term risk has been shown to be low, the long term relative risk for total cardiac and all-cause death/MI events significantly increases when the coronary artery calcium score is greater than 400 [284,308]. In one study of subjects with a normal MPI exam, a CAC score > 400 was associated with a 3.55 fold increased risk for any cardiac event (and 2.75 fold increased risk for cardiac death/MI) compared to patients with minimal CAC (less than 10) [236]. In fact, a CAC score of >400 with normal MPI results was associated with an approximately 3% annual event rate [236]. In another study of patients with normal MPI, 78% had a CAC greater than zero, 56% had a score greater than 100, and 31% had a score greater than 400 [237]. The annualized event rate for patients with calcium scores greater than 400 can be as high as 14% [11].

 Additionally, in patients with significant coronary artery stenoses, the presence of CAC is associated with a worse prognosis [1]. Clinical decisions should not be based solely on the coronary artery calcium score [5]. Other factors such as individual risk factors and medical history need to be reviewed [5].

The extent of calcification has a high correlation with a significant stenosis somewhere in the involved coronary vessel and the greater the extent of calcification, the more severely narrowed the coronary artery is likely to be [4]. In general, the extent of calcification also affects the likelihood for an abnormal MPI exam. In one study, 41% of asymptomatic patients with a calcium score of greater than 400 had abnormal MPS, whereas, no abnormal scans were observed in patients with scores of under 100 [29]. In another study of asymptomatic patients, ischemia was identified on perfusion imaging in 27% of patients with CAC scores above 1000, but in only 1.9% of patients with scores below 1000 [226]. Myocardial perfusion imaging (MPS) has been shown to be normal in up to 87% of vessels with calcium scores of less than 10, and in 85% with scores between 11-100 [83]. For scores between 11-100, MPS will demonstrate evidence of ischemia in 1.7- 4.8% of patients [95,179]. For scores between 100-400, MPS will be abnormal in 5-18% of patients [95,236]. Approximately 25% of patients with a score of greater than 400 will have abnormal MPI exams [236]. Generally, patients with a calcium score of greater than 400 are considered to be at the greatest increased risk for subsequent cardiac events [31]. These data help to support the notion of CAC as a gatekeeper for MPI imaging [236]. It is generally accepted that further diagnostic imaging is not required in asymptomatic patients with a CAC score below 100 [237]. Using a cut-off of 100-400 would decrease MPI utilization by 42% (a cutoff of over 400 would decrease MPI usage by 69%) [236]. However, this cutoff may not apply to high-risk patients such as diabetics [237]. In a prospective evaluation of asymptomatic diabetic patients, 18.4% of patients with scores between 11-100 had perfusion abnormalities on SPECT imaging [237].

In general, the prevalence of abnormal MPS is between 15-46% for patients with calcium scores over 400 [45,95,179]. These results indicate that the likelihood of myocardial ischemia by SPECT is related to the coronary calcium score [46] and that it is appropriate to evaluate asymptomatic patients with CAC scores above 400 using MPS [95]. Another study demonstrated that when used in combination with a SRS (summed rest score) of at least 2 or a SSS (summed stress score) greater than 8, a CAC score of greater than 400 identified patients at highest risk for severe cardiac events [179]. Bear in mind that many patients with scores above 400 still have normal MPS exams [83]. Importantly, data suggests that when patients with high CAC scores have normal MPS findings, their prognosis with aggressive medical treatment is good [45] with an annualized event rate as low as 1% [119,207]. Although a CAC score of 400 is a reasonable threshold to prompt MPS in patients with a low to intermediate likelihood for CAD, an important point to consider is that patients with a high clinical likelihood for CAD may require a lower CAC score threshold [106]. In patients with multiple CAD risk factors, MPS can be considered in symptomatic patients and even those with low calcium scores as up to 15% of patients with scores of less than 100 may have perfusion abnormalities on MPS [74]. Therefore, CAC screening and myocardial perfusion imaging should be considered complimentary examinations and should be used in conjunction with the patients clinical evaluation to determine the most appropriate management [45,74,106]. The appropriate use criteria for cardiac radionuclide imaging state that MPI is appropriate in asymptomatic patients who are high risk for CAD (by ATP III criteria), high CHD risk patients with a CACV of 100-400, and in patients with a CAC > 400 at any CHD risk level [236].

Unfortunately, a single standard score to define abnormal is unlikely to be applicable to all ages and both sexes [5]. Although the actual calcium score is a good indicator of overall extent of disease, it may not be as useful for predicting cardiac events as a percentile ranking [24]. This is because coronary artery calcium generally increases with age [24,127]. A calcium score above the 75th percentile for age and sex matched individuals is associated with a much greater risk for cardiac events compared to individuals in the 25th precentile [24]. For instance, a calcium score of 40 in a 40 year old man would place him above the 95th percentile, while a 70 year old man with an identical score would be below the 10th percentile [24]. Patients in the top calcium score quartile have up to an 8-fold increased risk for cardiac events compared to patients in the lowest quartile [45]. Patients with a score greater than the 75th percentile for age and gender should be considered to undergo intensive risk factor modification and lipid-lowering therapy [127]. Asymptomatic patients with calcium scores above 100 who are above the 90th percentile should also be considered for SPECT myocardial perfusion evaluation due to their increased frequency of silent ischemia [46]. However, although a high percentile ranking is indicative of long-term risk for cardiac events, the finding is not always associated with ischemia on perfusion imaging [77]. In fact, there is a low likelihood (2.5-7%) for identification of ischemia on perfusion imaging in patients with scores below 100 due to the sub-clinical level of atherosclerotic disease [77]. Hence, perfusion imaging may not be required if the calcium score is less than 100, despite a high percentile ranking [77]. This group of patients (high percentile score with CAC less than 100), however, can benefit from aggressive antiatherosclerotic intervention [77].

Calcium Score


Less than 100 (but high percentile)

Does not necessarily require perfusion imaging (MPS). (+) Atherosclerotic intervention.

Percentile 90% or higher and score over 100

MPS should be performed

Over 400

MPS should be performed

Score 100-399

Consider clinical factors: sex, chest pain sx's, diabetes and selective MPS evaluation



Other authors suggest that a vessel-specific calcium score is actually superior and more accurately reflects the presence of coronary artery disease compared to whole-heart Agatston scoring [217].

Of course, coronary calcium score is just another variable to consider when evaluating a patient. Gender, smoking, and the presence of symptoms may modify a patients overall risk for cardiac events and the need for further cardiac evaluation [45].

Patients with chest pain and symptomatic patients:

The American College of Cardiology/American Heart Association has endorsed the use of CAC scoring as a filter before invasive coronary angiography or hospital admission for patient with chest pain symptoms, especially those with symptoms atypical for cardiac ischemia [271]. A finding of a CAC score of zero in a low risk patient presenting with chest pain, an equivocol ECG, and negative enzymes has a sufficient near term favorable prognosis that the patient can be safely discharged without further testing [271,274].

Articles are suggesting that even in symptomatic patients, a negative calcium score carries prognostic significance. In a meta-analysis of the use of CAC screening in symptomatic patients, only 2% of patients with a CAC score of zero had a >50% stenosis on ICA [276]. In the CONFIRM study of symptomatic patients predominantly with an intermediate probability of CAD, the prevalence of a stenosis≥ 50% with a CAC score of zero was 3.5% (and 82% of these patients had single vessel disease) [276]. However, other studies have suggested variable rates of obstructive CAD ranging from 8-19% [276]. This variability exists because the probability of CAD is driven in large part by the clinical pre-test probability for CAD [276]. Risk factors associated with a higher likelihood for CAD despite a negative CAC scan include patients presenting with typical angina, smoking, and a family history of premature CAD [276].

Even if coronary artery disease is present, a score of zero in a symptomatic patient is still associated with a favorable near-term prognosis, particularly in patients in the low-to-intermediate risk category [276]. In the same meta-analysis, only 1.8% of patients with no evidence of coronary calcium had a cardiovascular event in comparison to 9% of patients with detectable calcium [276]. In the CONFIRM study, there was no difference in all-cause mortality in patients without coronary calcium despite the presence of of nonobstructive ot obstructive CAD [276].

Some authors have suugested that in low risk symptomatic patients referred for coronary CTA, a negative CAC score is associated with an excellent prognosis and that CTA imaging may not be necessary [276].

Pre-operative evaluation:

The presence of CAC on pre-operative CT scanning is associated with cardiac complications during non-cardiac thoracic surgery, however, the positive predictive value is low (23%). The absence of coronary artery calcium has been shown to be a reliable predictor of a favorable post-op cardiac course [3,265]. Coronary artery calcium scoring can aid in further patient risk stratification following pre-operative myocardial perfusion imaging evaluation [265]. Patients with normal pre-operative MPI exams, but high calcium scores (over 1314) have an increased risk for perioperative cardiac events (12% versus 5%) [265]. The highest rate of perioperative cardiac events was observed in patients with abnormal MPI and high calcium scores (22%) [265].


Despite a strong correlation between the CAC score and the severity of CAD, the CAC score itself cannot differentiate between obstructive and non-obstructive CAD [312]. Additionally, coronary calcium scoring cannot rule out coronary artery disease in all patients [77]. In asymptomatic patients, a calcium score of zero indicates a very low likelihood for significant/obstructive coronary artery disease (prevalence of obstructive CAD is lower than 1% [281]), however, it does not completely exclude the risk for cardiac events [28]. Critical single vessel CAD can occur in 2-5% of subjects with a negative CAC score [45], but the likelihood for obstructive CAD depends strongly on the population that is being studied and may be less useful in symptomatic patients [281,312].

Approximately 5% of patients with acute myocardial infarction have no coronary artery calcium [77]. Although a recent prospective study found no evidence of flow-limiting CAD in stable symptomtic patients with low- or intermediate risk factors [281], several studies have reported that up to 8.7% of symptomatic patients with zero or low calcium scores can have obstructive coronary artery disease (≥ 50%) [210]. Other studies have noted that in symptomatic patients, between 1-39% will have obstructive CAD on angiography, despite a calcium score of zero [221,281]. In patients presenting with suspected ACS, up to 39% of the culprit lesions will have no evidence of calcification [221]. These findings suggest that calcification reflects chronic, stable CAD and may not be the best method to evaluate symptomatic patients [221].

Middle-aged women with a smoking history appear to be particularly susceptible to having events in the absence of, or with minimal CAC [45]. In a study in the Journal of the American Medical Association, coronary events were observed in 4.4% of patients with calcium scores of zero during a mean follow-up of 7 years [28]. These events are likely related to rupture of soft, unstable lipid plaques [28,45]. However, calcium may not have been properly detected in all patients as this study employed a standard CT scanner and 6 mm slice thickness [28]. Retrospective cardiac gating, multidetector imaging, and thinner slices have all been shown to improve detection of coronary artery calcification [8,16,18,27]. CT coronary angiography can be used to detect the presence of soft plaque in symptomatic patients and in patients with a high clinical suspicion, despite negative calcium scores..

Serial Coronary Calcium Evaluation:

Patients with moderately high calcium scores (exceeding 100) should be treated aggressively with anti-atherosclerosis therapy [46,56]. Serial monitoring of the patient's calcium score can be used to assess effectiveness of medical therapy [46]. Evidence supports that the CAC scores can be reduced with aggressive lipid-lowering drug therapy (such as statins which will slow the propagation of vascular calcification) [46,47]. Treated patients show only a small progression in calcium score (percent change in volume score of 10% or less) and can even demonstrate a reduction in the calcium volume [46]. Conversely, untreated patients can demonstrate progressive coronary calcification with a 35-40% increase in calcium volume score [46].

For patients with a negative CAC score on their baseline exam, up to 36% can have detectable CAC at followup  (mean detection time 6.1 years +/- 3 years) [299]. For patients with an initial negative exam, a followup study should not be performed sooner than 4-5 years [237,299]. New-onset CAC at followup most commonly involves a single vessls (most commonly the LAD) and the calcium burden is typically low (1-10 in up to 52% of patients, 11-100 in 44% of patients, and >100 in up to 4% of patients) [299]. Patients with initally negative exams at greater risk to develop CAC on followup include patients with traditional coronary risk factors such as HTN, DM, smoking, high BMI, and high LDL levels [299]. Patients with higher baseline scores tend to progress at a faster rate than individuals with lower baseline scores [46]. Patients that demonstrate progressive coronary calcification with a change of greater than 30-40% are at high risk for subsequent myocardial infarction [46]. Asypmtomatic patients with a significant (>15%) progression of their CAC score on annual evaluation, have their risk for acute MI increased by 17.2% compared to patients without progression [264].


The chest radiograph has a low sensitivity for detecting coronary artery calcification. The best site to detect coronary artery calcification on the PA CXR is along the mid left heart border (the left main, and proximal portions of the left anterior descending and left circumflex arteries lie in this location). CAC appears as thin, parallel white lines on the chest radiograph. The accuracy of CXR for detecting coronary calcifications is only 42% [4]. Plain film evidence of coronary artery calcification in symptomatic patients under the age of 65y, is almost always (nearly 100% incidence) associated with significant coronary artery disease. About 30% of asymptomatic patients will also have significant narrowing.

Fluoroscopy has also been used successfully for the detection of coronary artery calcification. Sensitivity ranges from 40%-79% [4]. However, up to 48% of calcifications identified on EBCT can be missed at fluoroscopy [4].

Electron beam CT (EBCT): EBCT was initially used for calcium scoring. EBCT is capable of very rapid scans which can be triggered from prospective ECG gating (generally at 80% of the R-R interval) to minimize cardiac motion [4]. The estimated peak radiation dose from the exam is between 1.1 to 1.3 rad (cGy) and no contrast material is required [4,14]. Overall, EBCT and MDCT have been shown to have equivalent reproducibility for measuring calcium scores [58] and EBCT scanners are no longer produced [271].

Helical CT:  For the detection of significant coronary obstructive disease, helical CT has a sensitivity between 88-91% and a specificity of about 50% (accuracy 76%) [4]. The quantity of coronary artery calcifications measured by helical CT correlates positively with obstructive CAD [2] and the absence of coronary calcification has a high negative predictive value for the exclusion of CAD in patients with atypical chest pain [6]. Although lack of calcification does not exclude atherosclerotic plaque (about 5-10% of patients have CAD despite the absence of coronary calcifications) [6] it does indicate a low likelihood for obstructive CAD. Calcific deposits are often blurred on single slice helical imaging because of cardiac  and small calcifications may not be seen [4]. Retrospective ECG gating of diastolic data has been shown to improve detection of calcified coronary plaques (less cardiac motion during diastole) [6]. The coronary calcium scoring system used for electron beam CT may not be entirely applicable to helically acquired exams, but further investigation is required [14]. A more appropriate threshold for calcium may be 90 HU [16]. Note however that helical exams are more prone to streak artifacts from calcifications [16]. If these streaks are included when determining the coronary calcium score, the resultant score will erroneously high [16]. The estimated peak radiation dose from the exam is 2.7 rad at the skin (breast dose is 1.8 rad, lung dose 1.7 rad) [14].

Multisection helical CT:

Because of its shorter acquisition time, superior spatial resolution (0.625 mm longitudinal which decreases partial volume artifacts [37]), and temporal resolution approaching that of EBCT, MDCT is superior to EBCT for the evaluation of coronary artery disease [33].  For most patients the mean Agatston score is not significantly changed by using a 1.5 mm reconstruction increment, as opposed to the usual 3 mm increment [88]. The present recommendation is that slices should be reconstructed with 3 mm thickness and that the widest beam collimation that allows reconstruction of 3mm slices should be selected [224]. However, in young patients, very small amounts of calcium may not be identified unless overlapping slice reconstruction is used [88]. In young patients, even small amount of coronary artery calcification can influence the estimation of their cardiovascular risk [88]. (Proposed imaging protocol)

MDCT interscan variability: As with all cardiac calcium exams, even multi-detector helical CT examinations suffer from interscan calcium score variability [157]. Generally, variability is greatest for patients with minimal CAC and decreases with increasing amounts of CAC. Heart motion (due to limited temporal resolution) and partial volume averaging can account for a 10-50% (average about 30%) change in score (depending on lesion size) when patients are imaged twice within a short interval [24,53]. The percentile ranking assigned to the two scans can differ in up to 13% of patients (using 4-slice MDCT), 11-12% for 16-slice scanners, and up to 24% for certain 64-slice scanners (EBCT interscan variability is approximately 15% (varying from 11-28%)) [42,157]. To reduce interscan variability, thin slice imaging will help to reduce partial volume effects and overlapping reconstructions are also useful [53]. When using prospective gating for the exam, interacquisition variability in calcium measurements is significantly less at slower heart rates- likely due to decreased cardiac motion artifacts [21]. One way to reduce interscan variability is to repeat the exam in subjects who have a minimal to mild calcium score on the initial scan and average the two results [22]. Unfortunately, this will increase patient radiation exposure. The use of calcium volume measurements rather than a calcium score, has also been shown to decrease variability in the exam [22]. For a volume score, all pixels with an identified ROI of 130 HU or more are included in the score measurement [155]. A recent article has suggested that among patients with intermediate cardiac risk, the Agatson score can vary substantially between exams acquired on different vendors CT scanners [296]. This variability can result in reclassification of patients to the high- or low-risk catagories in up to 6.5% of cases [296].

Retrospective ECG gating can be performed to decrease interscan variability and also improve the quality of the exam [35,53]. Using this technique, overlapping MDCT projections with a are continuously acquired and the ECG signal is simultaneously recorded [33]. Algorithms are then used to sort the data from different phases of the cardiac cycle into specific temporal windows (typically 10 windows) based upon the R-wave (i.e.: the R-R interval is divided into 10 equal time windows) [33]. Through the use of retrospective ECG-gating, the point in the cardiac cycle at which cardiac motion is minimal (typically late diastole) is used for image reconstruction producing excellent multiplanar reformatted images [7,13]. Multi-detector exams with retrospective gating have been reported to have less inter-exam variability (to about 10% or less [35,53]) when compared to EBCT studies [18], however, other authors have found persistent high interscan variability [26].

Retrospective ECG gating does not rely on estimation of the presumed next R-R interval as is seen in prospective gating [13]. Reconstruction data intervals can be accurately measured on the basis of the actual R-R intervals that occurred during the scanning [13]. The final reconstruction is based only on images obtained during a portion of mid-diastole, with the reconstruction trigger selected according to the actual heart rate (and this greatly reduces cardiac motion artifacts) [13]. The fastest and easiest image reconstructions use a pre-defined window of 40% of the RCA and 60% for the LAD [26]. However, using preselected reconstruction intervals can result in under-estimation of the true calcium score (and calcium volume)- particularly for patients with mild or moderate amounts of coronary calcium [37]. Improved image quality can be obtained by reconstructing several image sets and selecting the data with the fewest motion artifacts for calcium score determination [26,37]. For multi-detector helical CT acquisitions there is an inverse relationship between heart rate and image quality [13]. Overall, the best image quality is achieved when the patients heart rate is less than 75 beats per minute [13]. Oral beta-blockers before the scan may be considered if the HR is elevated (>75) [224]. Reconstruction image quality decreases with higher heart rates, irregular heart rates, or arrhythmias [13].

Further analysis has shown that each of the individual coronary arteries are best seen at varying points of the cardiac cycle [15]. The LAD at mid-diastole (50-70%), the circumflex at 50-60%, and the right coronary artery at 40-50% [14,15]. The left coronary artery, aortic root, and ascending aorta are best seen at mid-diastole (50-60%) [39]. Detection of small calcifications in the coronary arteries is improved when images are viewed at different reconstruction points [66]. In fact, up to 58% of patients with a calcium score of zero at one reconstruction interval, were found to have coronary artery calcifications when multiple reconstructions were reviewed [66]. The pulmonary arteries are best displayed during mid-to late diastole (80%) [39]. The present recommendation is that the data should be acquired or reconstructed during mid-diastole (70% of the cardiac cycle) [224], however, systolic data may be more appropriate if the HR is  greater than 75 [224].

Even with these variations, multidetector CT with retrospective ECG-gating produces cardiac images with fewer motion artifacts and shows a high correlation with coronary artery calcium scores determined using electron beam CT [16].

The one major drawback of retrospective gating is that it increases the patients radiation exposure compared to prospective ECG triggering due to oversampling [16]. Present recommendations suggest the ue of retrospective gating only for patients with irregular of HR?s above 75 [224]. Radiation dose from multidetector coronary CT can vary widely depending on the type of imaging protocol used from 1.5 to 5.2 mSv for male patients, and from 0.6 to 6.2 mSv for female patients [20,22,23]. The radiation exposure from spiral protocols using retrospective gating is at least 3 fold higher than that from electron beam CT [20]. Studies have shown that lower radiation doses can be used for the exam- this results in images with an increased amount of noise, but apparently detection of calcification is not greatly affected [19,23]. A reduced mAs scan based on the patient's BMI can produce diagnostic quality exams with 40% lower radiation and does not require changes in the calcium attenuation threshold used for Agaston score determination (85 mAs for BMI less than or equal to 30 kg/m2, or 120 mAs for BMI > 30 kg/m2 or weight > 85 kg) [262]. The patient dose can be reduced by lowering the mAs (to as low as 40-55 mAs) without significantly compromising exam quality, particularly for non-obese patients [22,60]. The present recommendation is that the scan should be acquired at 120 kVp [224]. Adjusting the kVp is not recommended as this can would require a new Agatston calcium threshold determination for proper quantification [224,262]. The use of a 100 kVp tube volatage has been shown to result in an overestimation of the Agatston score when the standard threshold of 130 HU is used [279,280]. Adjusting the threshold to 147 HU for 100-kVp exams leads to a better agreement with standard 120-kVp protocols, but with a persistent bias towards overestimation [279]- however, other authors suggest that a simple adjustment in the threshold HU measurement is not adequate [280].

The current recommendations for CAC imaging are that the radiation dose should average 1.0-1.5 mSv and should not exceed 3.0 mSv (DLP should not exceed approximately 200 mGy x cm) [224].

One other point to consider is that variation in attenuation values can affect CAC determination (which depends on the detection of aggregates of contiguous image pixels with attenuation values greater than 130 HU) [48]. Image attenuation values have been shown to vary between scanners and by body size [48]. Absorption of x-rays is higher in obese patients that results in beam hardening and deviation in the calculated calcium concentration [237]. This can produce calcium score values that do not reflect the true calcium burden [48]. Calibration phantoms containing known amounts of calcium hydroxyapatite and the use of "fat rings" to simulate a range of patient sizes can improve accuracy and permit comparability of measurements between persons imaged on different scanners [48].

The use of adaptive statistical iterative reconstruction to reduce radiation exposure also results in decreased image noise, as well as decreased Agatston and calcium volume scores compared to filtered back projection reconstruction [304]. Use of ASIR can reduce Agatston score by 10.5-31% [304]. The use of other iterative reconstruction techniques have not been shown to produce significant change in calcium score compared to FBP [304].

An Agatston scoring scale is used to determine risk of cardiac events [24]. Using this method the slice thickness should be 3 mm and a Hounsfield density measurement greater than +130 is considered indicative of calcification [4,24]. For each level scanned, all pixels with a HU density measurement greater than 130 HU are then displayed and a region of interest (ROI) is placed around the lesion [9]. If using a more narrow slice thickness, a mathematical correction must be applied to avoid oversampling [24]. For instance, if the slice thickness were 2.5 mm, the appropriate scaling factor would be 2.5/3 [24]. To be considered for the final score determination a calcification needs to have a minimum area of greater 1 mm2 [8] (or three contiguous pixels [127]). Calcifications that do not meet the attenuation threshold (130 HU) or are less than 1 mm2 are not included in the score [155]. A lesion density score is then determined based upon the maximal HU number in each ROI [9]- 1= 130 to 199; 2= 200 to 299; 3= 300-399; and 4 is greater than 400 HU. This lesion density score is then multiplied by the area of each region of interest to determine a calcium score [9]. The total calcium score is determined by adding up each of these scores from each of the four coronary arteries (left main, left anterior descending, circumflex, and right coronary arteries) [9,11]. A total calcium score of 0 is normal; 1-100 considered mild coronary artery disease; 101-400 moderate; and over 401 indicates extensive coronary artery disease and very high risk for cardiac event [30]. Up to 18% of asymptomatic patients with calcium scores between 100-399 will have perfusion abnormalities indicative of ischemia on stress myocardial perfusion SPECT imaging [36]. The higher the coronary artery calcium score, the more likely patients will have an abnormal myocardial perfusion SPECT exam (abnormal scans demonstrating ischemia are found in 45% to 46% of patients with scores above 400) [17,30,36]. Patients with no detectable calcium on EBCT have an excellent prognosis with an annual event rate ranging from 0.06%-0.13% [127].

Scans performed at 3 mm slice thickness are superior to those performed at 6 mm for accurate determination of coronary artery calcium score [8]. Even more accurate determinations of calcified volume can be obtain by using thinner slices from 0.5-1.5 mm [27,292]. Compared to 3.0mm thick slices, 0.5 mm thick slices can detect coronary artery calcium/subclinical atherosclerosis in 23% more patients [292]. One drawback of thinner slices is increased image noise, particularly in patients with a large BMI [292].

There can be considerable variability in EBCT coronary calcium measurements when two scans are performed on the same patient in close temporal proximity (between 14-50%) [4,5,26]. Interscan variability is most pronounced for patients with low, but non-zero calcium scores [5]. Interscan variation is an important limitation of electron beam CT and patients may require two scans with the higher calcium score used for risk stratification [5]. The interscan variability is likely related to scan misregistration, cardiac motion, breathing, and inherent image noise [4,12,22]. Scanning the entire heart during one breath hold will resolve the problem of scan misregistration [12].

Interscan variabilities can also be decreased by the use of an ECG trigger of 40% of the R-R interval (rather than 80% which is the trigger used for many EBCT exams) [12]. This is because coronary artery motion is at its nadir during early diastole (the period of 30-50% of the R-R interval), while the 80% trigger occurs on or near the P-wave during atrial systole [12]. Images obtained at the end of systole or at early diastole (beginning at 10-30% of the cardiac cycle) also suffer from motion artifact [13]. For prospective triggering of EBCT, the next R-R interval is estimated on the basis of the median of the last seven R-R intervals [13]. Prospective ECG triggering fails with rapid changes in heart rate, as in the case of patients with cardiac arrhythmias [13].

The sensitivity of electron beam CT for coronary artery disease has been reported to be between 88-100% [16] and the overall specificity is about 50%. The low specificity is due to the fact that CAC confirms the presence of plaque disease, but it may not be hemodynamically significant. Absence of CAC implies the absence of a significant coronary artery narrowing and is associated with a very low risk for future cardiac events (annual event rate less than 1%) [4,11]. The negative predictive value of an normal EBCT exam for significant stenosis (ie: 50% or greater) is between 90-95% [4]. However, lack of CAC does not confirm the absence of coronary artery disease- particularly in younger patients [4]. EBCT can be used in the evaluation of patients presenting to the emergency department with chest pain and non-diagnostic ECG's (excluding patients with prior MI or revascularization procedure) [11]. If the patient has a normal EBCT exam the risk of immediate MI is very low and the patient does not necessarily require admission [11]. Unfortunately, patients without visible calcium may still be experiencing an acute coronary syndrome [84]. In fact, 25-40% of culprit lesions are at sites of endothelial erosion with acute thrombus without underlying calcification [143].

In patients with no measurable coronary calcification at baseline, a followup EBCT score must exceed 11.6 Agastone units to qualify for statistically significant progression [63].

CT coronary angiography:

Approximately 40-60% of the invasive coronary arteriograms performed in the United States each year do not demonstrate obstructive CAD [166,213]. In the interest of sparing health care resources and limit unnecessary invasive testing, a reliable, non-invasive tool would be highly desirable for the identification or exclusion of CAD [166]. Myocardial perfusion imaging has long been used for the evaluation of patients with suspected CAD- unfortunately, 10-15% of MPI exams are inconclusive and up to 44% of patients with left main disease will only demonstrate small (<10%) or no perfusion defects [213]. A large portion of myocardial perfusion exams are also falsely positive with up to 59% of patients referred for cardiac catheterization based on an abnormal SPECT exam are shown to have no obstructive CAD [273]. Although coronary calcium score can aid in the detection of CAD in asymptomatic patients, stenoses can occur in vessels that do not contain calcification and it cannot be used to determine if there is a flow limiting stenosis [49,274]. Furthermmore, although the presence of coronary artery calcification is a specific indicator for the presence of coronary artery atherosclerosis, it does not represent the full burden of plaque (CAC is estimated to represent approximately only 10-20% of the total atherosclerotic plaque burden) [155,274]. Additionally, recent studies have indicated that calcification in plaque is an indicator of stable plaque [62] and that calcification is found infrequently in ruptured plaque [105]. For patients with low- and intermediate risk, a low calcium score is associated with an event rate below that predicted by the Framingham criteria alone [134,274]. Additionally, in asymptomatic patients CCTA may not provide incremental prognostic information above that of CAC scoring- in fact, atherosclerosis detected by CCTA can lead to an increase in invasive testing [274].

However, high risk patients with low calcium scores have been shown to have the same risk predicted by the Framingham criteria and therefore, calcium score imaging does not aid in risk stratification in these patients [134]. In patients considered at high risk for coronary artery disease, up to 51% of patients with normal calcium scores can be shown to have non-calcified plaque on coronary CTA (note: most patients with normal calcium scores show only mild disease, but up to 4% can show a moderate to severe stenosis) [134]. In the CORE 64 trial, 20% of symptomatic patients without CAC had at least one angiographic stenosis of at least 50% [274]. In another study, 8.2% of symptomatic patients with no detectable coronary calcium had a greater than 70% stenosis due to a non-calcified plaque [151]. In another study, 17% of men, and 25% of women had no detectable calcium, but were found to have plaque by coronary CTA (although in most of these subjects the plaque burden was mild and only 2.5% of these patients were found to have a substantial plaque burden) [198]. In another study of patients with chest pain, 10% of patients were found to have obstructive coronary artery disease, however, 39% of patients were found to have non-obstructive CAD [225]. Risk factors in asymptomatic patients for having exclusively noncalcified plaque include younger age, familial history of premature CAD, increased levels of vascular inflammation, smoking history, and diabetes [274]. None-the-less, these risk factors are associated with only a slight increase in the relative risk of events and/or mortality and the absolute-event rates are minimal in the absence of CAC (1-2% 10 year risk) [274]. On the other hand, the presence of plaque can prompt more aggressive medical therapy for these patients [198]. Still, the ACC/AHA recommends against using CCTA in asymptomatic patients even if those risk factors are present [274].

Further risk stratification of symptomatic patients based on their pretest probability of CAD, can aid in the prognostic significance of the CAC score [274]. In symptomatic patients with low and intermediate pretest probability of CAD, a CAC score of zero was associated with the presence of significant CAD in 3.4% and 3.9% of patients, respectively [274]. In another study of symptomatic patients without known coronary artery disease, in those with a CAC score of zero, the presence of a  ≥ 50% stenosis was 3.5%, and only 1% had a stenosis  ≥ 70% (translating to a negative predictive value for excluding 50% and 70% stenoses of 96% and 99%, respectively) [274]. The actual cardiac event rate in these patients has also been shown to be low. In one study of symptomatic subjects with a low to intermediate risk and no CAC, the event rate was slightly <1% [274]. In the CONFIRM registry, in symptomatic patients with a CAC = 0 and only non-calcified plaque at CCTA, < 0.2% of patients suffered hard events of death or MI at 2.1 years of followup [274]. Based on these studies, some authors have suggested that in symptomatic patients with a low pretest likelihood for CAD and a CAC score of zero, no further cardiac testing would be needed [274]. On the other hand, for symptomatic patients with elevated calcium scores > 400, studies have shown that approximately 90% have significant stenosis (>50%) at invasive angiography (suggesting little role for CCTA in these patients) [274]. And in symptomatic patients with CAC scores between 101-400 (or low risk symptomatic patients with a CAC >400), further evaluation with non-onvasive functional imaging or CCTA has been suggested [274].

Vulnerable plaque: Most acute coronary syndromes arise from plaques that are not hemodynamically significant [151]. Studies have demonstrated that almost 70% of coronary occlusions (leading to myocardial infacrtion) result from thrombosis of lesions with a stenosis of less than 50% [191]. Ideally, it is the non-calcified or vulnerable plaque that would be most useful to identify as these plaques can lead to acute coronary syndrome [123,134]. Vulnerable plaques have a large, hypoxic, metabolically active core containing lipid, oxidized lipid, and inflammatory cells (predominantly macrophages that results in FDG accumulation on PET imaging) [164,238]. Vulnerable lesions have a thin fibrous cap that can be weakened by the secretion of proteolytic enzymes from the inflammatory cells [164]. Conventional angiography provides only information about luminal diameter, it does not provide information regarding plaque composition [62,171]. Two specific characteristics of vulnerable plaque are: 1- about 95% of vulnerable lesions are located in proximal, larger-sized coronary arteries; 2- vulnerable plaques tend to be of low attenuation (< 30 HU); and 3- while vulnerable plaques are not lumen-occluding, it has been shown that they fill more than 50% of the vascular cross-sectional area and the plaque volumes are large due to positive (i.e. outward) vessel remodeling [171,185]. Positive vascular remodeling (PR) has been described as an external vessel diameter of >110% compared to a normal proximal or distal segment [185]. It has been suggested that the presence of positive remodeling, low plaque density (LAP), and spotty calcification have a high positive predictive value for culprit plaques associated with acute coronary syndromes, while the absence of these three characteristics showed a high negative predictive value [171,185,238,264]. The presence of low attenuation plaque and positive vessel remodelling provide additional prognostic information with regards to future coronary events [285]. In one study, the presence of both low attenuation plaque and positive remodeling was associated with a 22% likelihood for an ACS over a 2 year follow-up, compared to < 0.5% in patients with plaques that lacked these features [185]. The greater the remodeling and the larger the plaque area, the higher the likelihood for plaque rupture and an earlier acute event [185]. In another study, the presence of low attenuation plaque and positive remodelling was associated with a hazards ratio for cardiac events (sudden cardiac death, MI, and unstable angina) of 11.2 [285]. There appears to be an increased prevalence of noncalcified low attenuation plaque in women [259]. Patients with nonalcoholic fatty liver disease have also been shown to have a higher incidence of high risk plaque [298].

CT angiography can provide additional insight into the presence of CAD by permitting visualization of non-calcified plaque and has been shown to be more accurate than calcium scoring in demonstrating coronary stenoses [49]. Additionally, due to it's high negative predictive value, the exam is of great use in patients with low to intermediate risk factors who present with atypical chest pain  [92]. By demonstrating normal  or non-obstructive CAD, invasive coronary artery angiography can be avoided [213]. Multidetector CT (MDCT) offers several other advantages for coronary artery evaluation- the exam is non-invasive, it can be completed in a short period of time, myocardial bridging can be readily appreciated, and it can effectively define coronary anomalies [46,54]. MDCT coronary angiography may also be cost effective- with overall lower health care costs compared to patients that undergo myocardial perfusion SPECT imaging and coronary catheterization [144,182,189,199]. MDCT can also be performed for evaluation of stenosis of coronary artery bypass grafts [85]. Noncardiac findings can be seen in 25-61% of patients, of which 5-41% may be significant or potentially significant [156].

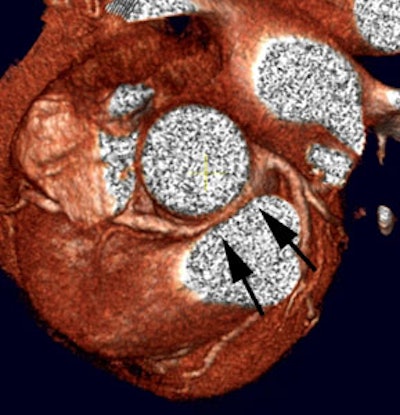

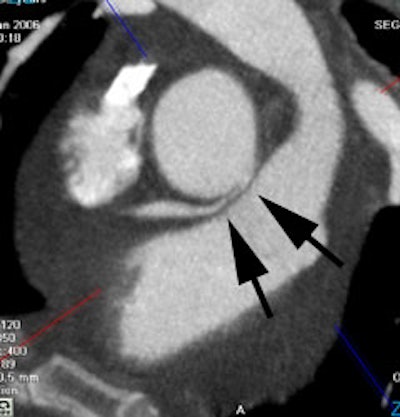

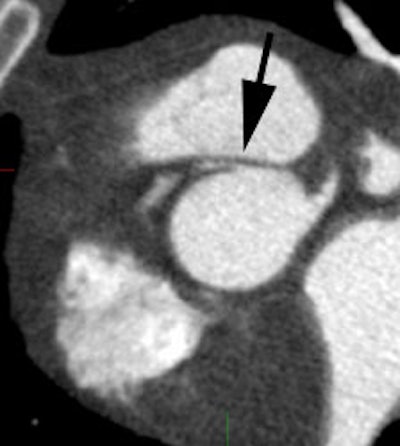

Anomalous RCA origin from the left coronary sinus: The patient below underwent coronary CT angiography to assess for coronary artery disease. The patient was found to have an anomalous RCA arising from the left sinus of valsalva. The vessel can be seen to course between the pulmonary trunk and aorta (black arrows)

  Rca From Left1Rca From Left2Rca From Left 3 D


The most significant drawback of the CT exam is in it's suboptimal ability to consistently detect the presence of anatomic coronary lesions [46]. In general, visualization of the epicardial coronary arteries is limited by cardiac motion, the small size of the distal arteries, and the tortuous course of the vessels through the imaging plane [34,99]. The right coronary artery has the greatest amount of motion and velocity- generally between 6-42mm of axial displacement during the cardiac cycle (3-20mm for the left coronary artery) [99]. Motion artifacts can also be seen in patients with a pericardial effusion due to a pendulum-like movement of the heart- the left circumflex and right coronary arteries are particularly affected [290].

These factors are important because of the limited temporal and spatial resolution of the CT scanner. Temporal resolution is limited to one-half the gantry rotation speed (this is about 200-300 msec for most state of the art scanners) while angiography can capture 30 frames per second (approximately 30 msec temporal resolution). The fastest single-source scanner currently available spins at 270 milliseconds per rotation for a temporal resolution of approximately 135 milliseconds [266]. For motion free evaluation of the coronary arteries the acquisition of the entire heart has to be completed within one diastolic phase [211]. The temporal resolution of a dual head system is approximately one-quarter the gantry rotation time [266]. The fastest dual-head scanner spins at 280 milliseconds per rotation for a temporal resolution of about 70 milliseconds [266]. Therefore, at lower heart rates, the entire heart can be scanned with a dual head system [211]. The spatial resolution is limited by the size of the CT detectors (presently with over sampling the resolution is about 0.5 mm). Therefore, CT coronary angiography generally has very good sensitivity for stenoses in the proximal and mid-segments of the main coronary vessels (vessels over 2 mm in size) [69], but the evaluation of the distal main vessels and their side branches is much more limited [69]. The current generation of 64 slice scanners have an in plane resolution of 0.4 mm, a slice thickness of 0.6 mm, and a temporal resolution of 165 ms [71,75]. Temporal resolution can be improved with:

Multisegment/multicycle reconstruction:  For patients with stable and predictable heart rates, the temporal resolution can be further improved to as low as 83 msec by applying a multisegmental reconstruction algorithm [75,99]. With multisegment reconstruction, data of two or more successive cardiac cycles are combined that cover, as separate segments, a 180 degree acquisition [99]. In other words, rather than reconstructing images from a single 180 degree arc during one heartbeat, images are reconstructed from two 90 degree arcs each obtained from a separate heart beat [266]. Because the acquisition of data within each heartbeat is now occurring over a smaller scan angle, the time required for the acquisition is shorter which effectively improves the temporal resolution [266]. The temporal resolution is improved by a factor 2n (n=number of cycles and segments) of the rotation time [99]. Therefore, using a 90 degree arc and two heart beats for data acquisition would rsult in a temporal resolution of about 67 milliseconds (assuming a gantry speed of 270 milliseconds per full roptation) [266]. Multisegment reconstruction requires that the heart must come to rest in the same position with the same cardiac cycle length for every beat of the scan [266]. Otherwise, multisegment reconstruction can result in motion artifact if the heart rate and position are not constant [75,266]. Also- the radiation exposure tends to be higher because of the requirement for overlapping x-ray exposure [266].

Dual Source CT: Dual source CT is characterized by two x-ray tubes and two corresponding detectors mounted on the gantry with an angular offset of 90 degrees [97,99,113]. Thus, a 90 degree rotation of the gantry is sufficient to acquire the 180 degree projection data needed for image reconstruction [113] and this improves the temporal resolution by a factor of 2 [97,99]. With a gantry rotation time of 330 msec, dual source CT has improved temporal resolution (83 msec by half-scan reconstruction- i.e.- one quarter of the gantry rotation time [161]) and this may decrease the need for pharmacologic heart rate modulation [89,97,99]. Second generation dual source scanners have temporal resolutions of 75 millisecondas and a high-pitch spiral scan protocol has been developed that allows scanning of the entire heart with a total scan time of approximately 270 msec [241]. Dual source CT has been shown to have significantly better diagnostic image quality than single source CT - particularly at higher heart rates [161] and has been suggested to have improved accuracy and specificity for the diagnosis of significant stenoses on a per segment basis [180]. Dual source CT may also be useful for the evaluation of patients with atrial fibrillation [109]. Motion free imaging of the coronary vessels is possible even at heart rates of up to 90 bpm [113]. Only heart rates that are both high and variable deteriorate image quality with dual source CT [97,125]. Even cardiac stents may be evaluated without heart rate control [135]. As with single headed CT systems, excessive coronary artery calcification (score >400) will also result in image degradation [125]. Faster gantry rotations are not possible at this time due to an increase in mechanical G-forces that are beyond mechanical engineering limits [99]. For dual source CT, the overall optimal reconstruction window has been suggested to be in late diastole at 65-75% of the R-R interval (for patients with low or intermediate heart rates- under 60 beats per minute) [113,261]. Other authors suggest that the majority of coronary artery segments are evaluable in patients with regular heart rates between 70-110 bpm using a prospectively gated scan with a systolic data aquisition around a center at 40% of the R-R interval [211]. Prospective gated dual source CT results in significant radiation dose reduction to between 2-4 mSv [211]. Overall, in patients with heart rates above 80 bpm, systolic reconstructions may yield superior image quality [113,261]. To achieve optimal image quality in patients with heart rates above 60 beats per minute, systolic and diastolic data may need to be available for review (between 25%-75% of the cardiac cycle) [261]. For patients with low heart rates (sinus rhythm below 60 to 65), a high pitch protocol (pitch 3.4) may be used to images the entire heart during one diastole and significantly reduce radiation dose to about 1.21 mSv (almost a 90% reduction) [211]. The main limitation of high-pitch protocols is that only one data set is acquired [211]. Therefore, no additional reconstructions are possible in case of timing errors, and no functional information can be obtained from the acquisition [211]. However, because the entire heart is scanned within one diastole, there are no step artifacts with this protocol [211].

An increase in body mass index (BMI) results in higher image noise [158,178]. In large patients, an increased bolus dilution due to larger blood volume may also result in a decreased contrast-to-noise ratio and decreased coronary artery attenuation [158,178]. Protocols need to be adjusted to account for BMI in order to improve image quality in larger patients [178].

Another limitation of CT coronary angiography is related to partial volume averaging of coronary artery calcification which results in calcifications appearing larger than their actual size [34].

Finally, it is important to remember that not all coronary stenoses identified by CT are flow limiting lesions [69]. Patient management based solely upon the CT findings can lead to inappropriate revascularization [69]. Myocardial perfusion imaging should be strongly considered in patients with CT lesions to determine their functional significance [69]. Non-flow limiting lesions probably warrant aggressive medical therapy [69].


1- High density objects: Calcified coronary plaques and metallic cardiac stents can affect the quality of the exam [69]. Coronary artery calcium can negatively impact the ability to evaluate coronary CTA [309]. Dense/large calcifications obscure the true vessel lumen due to blooming effects when the calcification partially extends into adjacent voxels [69]. Therefore, CT angiography may not useful in patients with a heavy burden of calcified plaque (score greater than 400-1000) which precludes adequate evaluation of the degree of stenosis [50,71,276]. Other authors suggest a score of 287 or greater (or 454 if all imaging conditions are optimal) is a value above which more than 50% of cases may not be able to rule out coronary artery stenosis [309]. In an analysis of the CORE-64 trial data, the authors found a significant disagreement between CTA and angiography for the determination of at least 50% coronary stenosis in calcified segments (with decreased specificity in severely calcfied segments-71%, compared to noncalcified segments -99% specificity) [240]. CT has a tendency to overestimate the degree of obstructive CAD in the presence of coronary calcification [240]. Among the segments with false-positive findings at MDCT, 85% had some degree of calcification (mild- 28%, moderate- 29%, and severe- 27%) [240]. However, other authors have found no significant effect in patients with high calcium scores [86]. Also, photon flux through high density objects can sometimes lead to a signal void adjacent to a densely calcified plaque or within a stent which can be misinterpreted as soft plaque [69]. The use of higher spatial frequency algorithms can aid in stent evaluation.

2- Arrhythmias: Patients with atrial fibrillation or other forms of irregular heart rhythms are also not candidates due to the high heart rate variability which results in temporal windows in different cardiac phases and suboptimal image quality [50,102,147]. The timing shift causes spatial inconsistency (typical stairstep appearance) on transverse images and motion artifacts [147]. Patients with mild heart rate irregularities may undergo imaging, but may require ECG editing to improve image quality [67,147]. ECG editing arbitarily modifies the position of the temporal window within the cardiac cycle, but typically requires retrospective data acquisition (which increases patient radiation exposure) [147,268].

3- Patients with breath-hold difficulties and those with the inability to remain supine and motionless are also not likely good candidates for CT coronary imaging [50].

4- Limited diagnostic accuracy has been reported in obese patients with a body mass index of 35 kg/m2 or greater [102].

Other exclusion criteria include known allergy to iodinated contrast, underlying renal dysfunction (serum creatinine greater than 1.36 - 1.5 mg/dL), multiple myeloma, hyperthyroidism, pheochromocytoma, and patients with acute coronary syndromes [52,71].

Patient preparation:

With use of 16 to 64 detector scanners, noninvasive CT imaging of the coronary arteries for non-calcified plaque is done by making adjustments to keep the patients resting heart rate low and utilizing retrospective gated reconstructions [32,33,34]. For coronary CT angiography, image quality is inversely related to the patients heart rate (i.e.: image quality declines with increasing heart rate) [35]. The right and circumflex coronary arteries seem more prone to motion artifact than the LAD- possibly related to their proximity to the atria which is reactivated during early diastole [43]. Motion-free coronary angiograms can be obtained in the majority of patients with heart rates below 80 beats per minute [40], however, the slower the heart rate the better the image quality. Heart rate variability also affects image quality with less variable heart rates producing better quality and more accurate exams [82,132]. This is because the commonly applied relative ECG-gating reconstruction technique (at a certain percentage of the R-R interval) does not generate images in exactly corresponding cardiac phases when there is intercycle variablity in the heart rate [82]. In other words, inconsistencies between heart cycles due to arrhythmia result in merging of slightly different cardiac phases despite acquisition of data from consecutive cardiac cycles at the same percentage in relation to the R wave [132]. With mutisegmented reconstruction techniques, this merging of data introduces blurring of the reconstructed image thereby reducing the number of segments that can be evaluated and decreasing accuracy for stenosis detection [132].

Beta blockade: In general, it is desirable to have the patients heart rate less than 60 (generally between 50-59 bpm). Side effects of β-blockers include hypotension, bradycardia, prolonged AV conduction times, and widened QRS complexes [209]. β-blockers should be used to achieve the desirable heart rate if there are no contraindications (such as asthma, COPD, or bronchospasm on inhalers, sinus bradycardia [HR less than 60 bpm], hypotension [systolic BP less than 100 mmHg], atrioventricular conduction block (second or third degree block), heart failure, diabetes, and Raynaud syndrome) [35,50,72,92]. Caution should be used for patients who are taking other atrioventricular nodal blocking agents such as calcium channel blockers (diltiazem, verapamil), digoxin, and other β-blockers [72].

Oral propranolol (20-40mg) or metoprolol [Lopressor] (50-100mg) given the night before and 1 hour prior to the exam can also reduce heart rate and improve image quality (especially for right coronary artery visualization) [43,50,51]. Metoprolol can also be administered I.V., but requires that patients be monitored (HR and BP) carefully during dosing (the agent has a half-life of 3-4 hours [209]). The initial dose should be 2.5 mg I.V. over one minute [72]. If the heart rate remains above 65 bpm after 5 minutes, an additional dose of 2.5 mg is administered [72]. If the heart rate still remains elevated, up to two additional 5 mg doses can be given (each over one minute) with a 5 minute interval between doses [72]. A total of up to 15 mg of metoprolol can be used I.V. [35,50,72,92]. If the patient has bronchospasm, two puffs of an albuterol inhaler are given [72]. If the patients heart rate drops to less than 45 bpm or develops symptoms due to bradycardia, consideration should given to administer atropine [72]. An initial dose of 0.5-1mg can be given via rapid IV bolus and can be repeated to a maximum dose of 3 mg [209]. If the patient is atropine resistant, resuscitative measures with IV fluids and epinephrine may be required [72]. Symptomatic hypotension can also be treated with IV fluid using 10-20 mL per kg of body weight [209].

Calcium channel blockers can be used to reduce the heart rate in patients with a contraindication to beta-blockers (such as congestive heart failure or asthma) [71,78]. Calcium channel blockers can be administered intravenously [92,297]. Diltiazem is the preferred agent because it shows the least negative inotropic effect [297]. The IV dose of diltiazem is 0.25 mg per kg of body weight up to 25 mg maximum; or in an oral regimen of 30 mg of regular-release diltiazem) [92]. Sublingual administration of short-acting nitroglycerin (1 to 2 tablets equal to 0.4 to 0.8 mg) given immediately prior to scanning has been used to improve visualization of the coronary lumen (via the vasodilatory effect) [71,92,116]. Nitroglycerin has been found to increase proximal coronary artery diameters by 12-21% [99] and allows more septal branches to be visualized [116], but the added value on diagnostic accuracy is not yet clear [99]. Contraindications to nitroglycerin include hypotension, migraine sensitive to nitrates, recent MI, severe anemia, increased intracranial pressure, known hypersensitivity to nitroglycerin, and recent use of nitrate-based medication for erectile dysfunction [92,93].

All patients that receive medication for the exam must be monitored for 30 minutes following the test and must not operate machinery or drive for 3 hours following the IV administration of 10 mg or more of metoprolol [92].

Ivabradine is an agent that is used in certain parts of the world, but it is not yet approved in the US [209]. Ivabradine is a pure heart rate lowering agent that acts by inhibiting the ionic current involved with pacemaker activity in cells of the SA node, with no effect on the duration or morphology of the action potential [209]. The agent reduces the slope of spontaneous diastolic depolarization and lowers heart rate at rest and during exercise- in fact, the agent is rate dependent and has a greater effect at higher heart rates (i.e.- the degree of heart rate reduction increases with increasing heart rate) [209]. As a result, symptomatic bradycardia is rare and the agent can be used in even if patients are taking beta-blockers [209]. Ivabradine has no effect on myocardial contractility or intracardiac conduction and has only minor effects on blood pressure [209]. One study suggested that a 15 mg single dose of the agent or ivabradine 5mg twice daily for 5 days prior to the exam are effective for lowering patient HR [293]. Contraindications to Ivabradine include acute MI, unstable angina, heart failure (functional class II-IV), severe hypotension, sick sinus syndrome or sinoatrial block, 3rd degree AV block, severe hepatic insufficiency, and use of strong cytochrome P450 3A4 inhibitors [209].

Scan Protocol and Radiation Dose:

Generally- scanning should be in a cranial-to-caudal direction- beginning at the carina and extending through the base of the heart during a breath hold [50] Valsalva maneuver should be avoided as this can result in poor contrast enhancement [99]. If bypass grafts or internal mammary arteries are to be evaluated, scanning should begin at the level of the aortic arch [50]. The thinnest detector collimation possible should be used for image acquisition [50]. An initial non-contrast exam is performed to determine the extent of coronary artery calcification which, if severe, will prevent CT angiography [50]. Between 60-120mL of a contrast agent with a high concentration of iodine (300-400 mg/mL) is administered via an 18 to 20-gauge catheter at a rate of 4-6 mL/sec [35,50,71,92,117]. The injection should be followed by a saline flush (25-50 mL at 4-6 mL/s) to decrease beam-hardening artifact within the right ventricle which can obscure the RCA [35,50,71,117]. Alternatively, contrast can be injected in a bi-phasic pattern with 50mL at 4mL/sec and 30-50mL at 2.5 mL/sec followed by a saline flush [51]. Another protocol calls for a biphasic injection with the second phase consisting of a 50 mL mixture of 30% contrast and 70% saline that is then followed by a saline flush [92]. Optimal contrast opacification may require a more sophisticated approach based upon patient body weight as an inverse correlation has been demonstrated between aortic attenuation and body weight [121]. Some authors suggest using 1.0 mL/kg of 350 mg I/mL contrast medium injected at 4.5 mL/s followed by a saline flush [121].

The scan delay can be determined using a test injection (20 mL) with repeated scanning at 2 sec intervals positioned at the level of the aortic root [92]. Scan delayed can be empirically timed to coincide with the beginning of the saline flush (about 25 seconds) or bolus tracking can be performed with an ROI over the ascending aorta [50]. Bolus tracking may yield better vessel enhancement than a test bolus [38]. In general, contrast materials with higher iodine concentrations yield significantly higher attenuation in the coronary arteries [59].

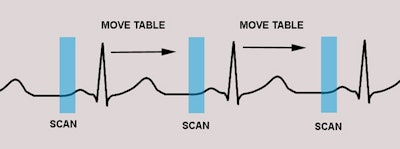

Prospective ECG triggered exam: For prospective ECG gated imaging, the x-ray beam is turned on at predetermined cardiac phases to acquire sufficient data to reconstruct images during the acquisition window [300]. Prospective CT angiography is a step-and-shoot axial (non-helical) examination (effective pitch is 1) with a beam-on time of approximately 26% of the R-R interval [138,167] (for single-source scanners, the minimum duration of active tube current is approximately one half of the rotation time plus the fan angle [194]). This method takes advantage of the large volume coverage available with 64-detector row CT (64 x 0.625 mm= 40 mm/4cm thick slabs of z-axis coverage) [122,167]. Patient's should have a low stable heart rate less than 65-70 beats per minute, low heart rate variability, and no arrhythmia [122,137,234,300]. For this exam, scanning is initiated at a predefined time after detcetion of an R-peak- typically during mid-to-late diastole -for example at 60% or 70% of the R-R interval [101,201,266]. Therefore, the x-ray beam is turned on for only a short portion of diastole when the data acquisition is considered relevant, and it is turned off during the remainder of the R-R cycle [138,145]. The projection data are acquired for only part of the complete gantry rotation (i.e.: a partial scan) [101]. Additional "padding" of the "tube-on" time is commonly employed (typically about 100 msec) [122,138]. This technique (padding) turns the tube on prior to, and leaves it on after, the pre-set acquisition time- this permits the reconstruction to adapt to minor heart rate variations in order to produce high quality images [122]. In other words, padding has potential for rendering a diagnosis in cases in which image interpretation in the selected phase is suboptimal, because multiple other phases are available for analysis [194]. The use of padding increases patient radiation exposure and for patients with excellent heart rate control, padding may not be necessary [194].

Following completion of the first acquisition, the table is then moved to the next location for further data acquisition (i.e.: this is a non-helical acquisition) [101]. The cycle is repeated until the entire scan length is covered- typically 12-15 cm [101]. The result is very little overlap (5 mm) between the scans [122] and the pitch is approximately 1 [300]. The average total scan time is about 5 seconds with a total x-ray on time of about 1 second [122]. For wide array scanners (320 detector rows with 16 cm z-axis coverage), the entire heart may be covered in a single gantry rotation [266]. The advantage of prospective triggering is reduced radiation exposure because the projection data is not acquired throughout the cardiac cycle [101,118]. With this technique- mean effective doses have been reported to be 2.6-4.4 mSv (approximately 68-80% dose reduction compared to retrospective gating), but doses about or below 1 mSv can be obtained in thin patients [122,137,138,145,201]. Diagnostic performance has been shown to be similar between prospective and retrospective CT angiography exams [137,138]. Drawbacks of this technique are that patients with high (above 65 bpm) are precluded due to the narrow predefined reconstruction interval (higher heart rates produce more motion artifacts) [145,295]. Also- the technique does not work well if there is irregular heart rate due to reconstruction stair-step artifacts [145,295]. Other disadvantages of prospective gating include the inability to evaluate the cardiac valves, wall motion, and other functional parameters as images can only be reconstructed from the predefined phase of data acquisition [145,266]. However, these limitations can be overcome with PET/CT scanning in which myocardial perfusion and ventricular function can be evaluated on the gated perfusion PET exam [149].

Prospective imaging: For prospective imaging- the x-ray beam is turned on for only a short period of time- this helps to minimize patient radiation exposure


A dual-source scanner can acquire a prospective ECG-triggered exam using high-pitch helical scanning if the patient's heart rate is low (under 60 beats/min) and the patient has a low BMI (under 30) [266].

A retrospectively ECG gated acquisition had been the preferred method for contrast enhanced imaging of the coronary arteries [35]. Retrospective ECG gating coronary CT requires a highly overlapping continuous spiral scan (typical pitch is 0.2 to 0.4) with a table speed adapted to the patients heart rate and simultaneous recording of the ECG trace which is used for linkage of scan data with particular phases of the cardiac cycle [35,101]. In other words, data is acquired throughout the cardiac cycle with a continuous helical acquisition and then retrospectively, projection data from selected points within the R-R interval are selected for image reconstruction [101]. Advantages of retrospective gating compared to prospective gating include improved temporal resolution with multisector/multicycle reconstruction, the ability to acquire systolic phase information and ejection fraction, the ability to assess ventricular and aortic valve motion, and the potential for ECG editing [137]. Retrospectively gated techniques are also less sensitive to arrhythmia [266]. The disadvantage of this type of acquisition is increased patient radiation exposure [266].

Retrospectively gated studies can be reconstructed with partial scan data or with segmental reconstruction [101]. For partial scan reconstruction, the scan data required for reconstruction are obtained by rotating the x-ray tube 180 degrees plus the fan angle (30-60 degrees) of the CT detector assembly [101]. Therefore, the temporal resolution will be slightly greater than one-half of the gantry rotation time [101]. In multiple segmental reconstruction, the scan projection data to perform a partial scan reconstruction are selected from various sequential heart cycles, instead of from a single heart cycle [101]. In other words- data from different parts of the heart cycle are chosen, so that the sum of these segments equates to the partial scan data required for image reconstruction [101]. This results in improvement in temporal resolution [101]. The disadvantage is that because projection data sets are obtained from different heart beats, a mis-registration due to rapid motion can result in degradation of image spatial resolution [101].

High-definition CT offers 2.5 times more views per rotation compared to standard CT and substantially improves the in-plane resolution to 0.23 mm and improves contrast resolution to 3 mm [300].

Radiation exposure:

Because image quality on CT is dominated by quantum noise (mottle), the radiation dose is closely linked to diagnostic accuracy and confidence [159]. Too low a radiation dose leads to high-noise-level images that are nondiagnostic [159]. A drawback of retrospective ECG gated CT is that it is associated with a higher radiation dose to the patient [35] because of overlapping data acquisition and acquiring data during cardiac phases that do not contribute to image reconstruction [118]. With a multi-detector row CT the radiation dose is approximately 7 to 21 mSv (0.7 to 2.1 rem) and is higher in women (1 mSv= 0.1 rem) [35,50,52,122]. The female breast can receive an effective dose that is approximately 10 times that of a routine mammogram [126]. Doses from dual-source CT systems are also relatively high- ranging from 8-16 mSv [122]. The dose from coronary CT imaging is higher than the dose from conventional angiography (which is about 2.5-5.6 mSv) [50,51,78,122,141]. A JAMA review, found wide variability in the radiation dose associated with 64-slice CT with an estimated dose of 12 mSv (equivalent to the dose from 600 CXR's) [154]. The article concluded that effective ways to reduce radiation exposure are available and should be utilized when performing coronary CTA [154]. Breast shielding using bismuth shields can reduce breast radiation dose from 46-57%- however, at least one article using breast phantoms has suggested that this shielding can result in increased image noise and decrease tissue contrast that may affect evaluation of the coronary arteries (i.e.- detection and characterization of plaque) [255]. The use of breast shields for coronary CTA are not presently recommended by the Society of Cardiovascular Computed Tomography [259].

The radiation from CT imaging "may" pose a risk for increased incidence of breast and lung cancer [111]. It has been calculated that a 10 mSv dose may be associated with a 1 in 1000 to a 1 in 2000 lifetime cancer risk [122]. Therefore, a 15 mSv CT scan has a range of risk for inducing a fatal cancer between 1 in 677 to 1 in 1333 [122] (to as high as 1 in 1900 [129]). One point to remember is that the excess lifetime risk of radiation induced cancer mortality declines significantly with age and that the majority of patients being evaluated for coronary artery disease are often elderly [98,111]. Additionally, the estimates are controversial and probably overestimated because of recognized assumptions within the linear no threshold model used for risk determination [259]. The excess relative risk for lung and breast cancer after a single multidetector CT of the chest is generally below 1% for individuals aged 55 years or older [111]. However, the lifetime excess risk for breast or lung cancer in girls and young women aged 15-25 years that undergo a single ECG-gated CT angiographic exam is higher- ranging from 1.7% to 5.5% for a single examination [111]. The estimated attributable lifetime cancer risk after an ECG-gated coronary CT angiography exam has been reported to be as high as 1 in 219 for a 20-year old woman [160]. The risk for radiation induced cancer would be increased in an additive manner if multiple follow-up exams were performed [111]. One point to remember is that estimation of radiation risks is based upon atomic bomb data [129]. There is a certain amount of uncertainty when trying to account for biological effectiveness between gamma rays and fast neutrons to which atomic bomb survivors were exposed and x-rays from CTCA exams [129].

To put the radiation dose into perspective, the dose for a rest-stress myocardial perfusion exam using Tc99m is 8-17.5 mSv; using thallium stress and reinjection its 18-25.1 mSv; and using a dual isotope exam the dose is about 27.3 mSv (this is one reason why dual isotope imaging has fallen out of favor) [122,190]. The radiation dose is also comparable to the annual dose received from naturally occurring sources of radiation such as radon and cosmic radiation (1-10 mSv) [172]. For most CT examinations, the potential risk of dying is less than that of drowning or of a pedestrian dying from being struck by any form of ground transportation [172]. The estimated life-time risk of death from various sources have been described and can be reviewed for comparison to radiation exposure (Epicardial adipose tissue:

Epicardial adipose tissue located within the pericardial sac is associated with impaired LV systolic function, atrial fibrillation, cardiomyopathy, and particularly, coronary artery disease [303]. Metabolic processes in the epicardial fat are thought to affect atherosclerosis by endocrine and paracrine mechanisms of secreted proinflammatory cytokines and adipokines [303]. CT can be used to quantify the volume of epicardial adipose tissue [303]. Greater volumes of epicardial adipose tissue have been shown to be associated with a greater likelihood for myocardial ischemia [303].
